Welding Oxygen: A Practical Alternative

If you're reading this page, you probably already know that high-flow oxygen can stop cluster headache attacks. But getting a prescription, finding a willing doctor, and navigating insurance can feel like an obstacle course, and for many patients, it's one they can't get past. A 2011 survey found that 41% of patients prescribed home oxygen were denied coverage by their insurers.^[1] The cost of medical oxygen through a Durable Medical Equipment (DME) supplier (the companies that deliver medical oxygen to your home) can run $200–400 or more per month without insurance.

Welding oxygen is a common workaround. It's sold at welding supply shops, requires no prescription, and costs a fraction of the medical route. The same survey found that 12% of US cluster headache patients were using it.^[1] On patient forums like ClusterBusters, members have discussed and used welding oxygen for over a decade.

If the words "welding oxygen" make you nervous, that's understandable. By the end of this page, you'll know exactly what welding oxygen is, why it's safe, what equipment to buy, and how to set it up, step by step.

Welding Oxygen Is Generally Safe to Breathe

The gas is the same

Both medical and welding oxygen are produced by the same industrial process: cryogenic fractional distillation of air. In many facilities, the gas comes from the same bulk tank. The difference between what's labeled "medical" and what's labeled "welding" is mostly paperwork.

Medical oxygen (USP grade) must be at least 99.0% pure. Welding oxygen, in practice, routinely tests at 99.5% or higher; modern air-separation plants simply don't have a separate "dirty" production line. As Francois Burman, a professional engineer at Divers Alert Network, concluded after investigating this question for scuba diving: "Oxygen is oxygen, and if the purity exceeds 99 percent, it is safe for use where pure oxygen is required."^[2]

No documented harm

No adverse events from breathing welding oxygen appear in the medical literature, FDA databases, or patient community reporting. A 2022 review of the full evidence base on oxygen therapy for headache disorders cited no case reports of harm from the practice.^[3] ClusterBusters forum threads document patients using welding oxygen for years without adverse effects.^[4][5] The documented cylinder-related incidents in the FDA's records (gas mix-ups and solvent contamination) actually occurred with medical cylinders in medical settings, not with welding oxygen used by cluster headache patients or by divers.^[6][7]

Cylinder handling

Medical cylinders are cleaned, evacuated, and inspected before every refill under FDA rules. Welding cylinders are not subject to these rules; in theory, a welding cylinder could retain traces of previous contents or develop internal moisture over time. In practice, oxygen cylinders from reputable suppliers are dedicated to oxygen and handled carefully, because contamination is a safety risk for welding too.

Although the risk is minimal, Cluster Headache Warriors recommends asking suppliers to purge the cylinder before filling, which clears any residual moisture or traces from previous contents.^[8] Reputable suppliers do this routinely; asking doesn't hurt.

Fire safety: the real risk (same for all oxygen)

The most important safety consideration has nothing to do with whether your oxygen is labeled "medical" or "welding." Oxygen makes things burn faster and hotter. It doesn't burn on its own, but a spark that would fizzle in normal air can become a fully developed fire in an oxygen-enriched atmosphere. This is true of all oxygen, regardless of grade or label. The good news: patients have used oxygen at home safely for years by following simple rules. See the Safety at Home section below for the full list.

What You'll Need

The setup has four components:

1. A cylinder: the steel tank that holds the oxygen under pressure.
2. A regulator: attaches to the cylinder valve and controls how fast the oxygen flows.
3. Breathing equipment: delivers the oxygen to your mouth. This could be a demand valve, a ClusterO2 kit, or a basic non-rebreather mask. See details below.
4. Tubing: a length of standard oxygen tubing connecting the regulator to the breathing equipment.

The total cost to set up from scratch is roughly $125–230 with a mask, or $375–600+ if you opt for a demand valve. Ongoing costs are about $35–65 per month (cylinder rental plus one refill) — though during heavy cluster periods you may need multiple refills per week, which can push monthly costs above $100. Compare that to $200–400+ per month through a DME supplier without insurance.

The following sections walk you through choosing and buying each component.

Step by Step: Getting Your Setup

Step 1: Find a supplier

The most commonly mentioned supplier on patient forums is Airgas, which has locations across the US. Other options include Linde (another major national chain), local welding supply shops, farm supply stores, and industrial gas distributors.

What to expect at the store:

You're buying a commodity: oxygen for welding. No prescription needed, no medical questions asked. You do not need to explain why you want it, and the staff won't ask.

Do not tell the supplier you intend to breathe it. This is emphatic, recurring advice across patient forums. If you disclose breathing intent, the supplier may refuse to sell to you; they aren't licensed to sell breathing gas without a prescription, and they don't want the liability. If asked what it's for, you're buying it for welding.

You'll need to either rent a cylinder or buy one outright. Some locations require opening a basic customer account (name, address, credit card); others serve walk-ins. At some Airgas locations, cylinders over 40 cubic feet require a commercial account with a tax ID; policies vary by branch, so call ahead.

Rent vs. buy:

• Renting is simpler for most people: ~$15–25/month. You swap an empty cylinder for a full one; the supplier maintains the cylinder.
• Buying avoids ongoing rental fees ($100–200+ for the cylinder), but you own it and are responsible for periodic hydrostatic testing (required every 5–10 years). Purchased cylinders are filled on-site rather than exchanged.

If one location gives you trouble, try another. Farm supply stores and small independent welding shops are often more flexible than corporate branches.

Step 2: Choose your cylinder(s)

Welding cylinders are sold by their capacity in cubic feet (cf); you'd ask for a "size 80" or a "size 125" at the counter.

For home, get the largest cylinder you can realistically carry. A bigger cylinder means fewer refill trips and less chance of running out mid-cycle. The decision comes down to what you can physically handle: can you carry it up stairs? Does it fit in your car? See table below for the dimensions and mass of common cylinders.

We recommend buying two cylinders. Many patients keep one large cylinder at home and a smaller portable one (40 or 60 cf).

Here are the most common sizes:

Size	Capacity	Height × diameter	Weight (full)	Approx. aborts*
40 cf	~1,133 liters	17″ × 7″	~27 lbs (12 kg)	~6
80 cf	~2,265 liters	31″ × 7″	~56 lbs (25 kg)	~11
125 cf	~3,540 liters	42″ × 7″	~75 lbs (34 kg)	~18
200 cf	~7,079 liters	51″ × 9″	~128 lbs (58 kg)	~35

*Approximate number of 10-minute aborting attempts at 20 LPM (200 liters each).

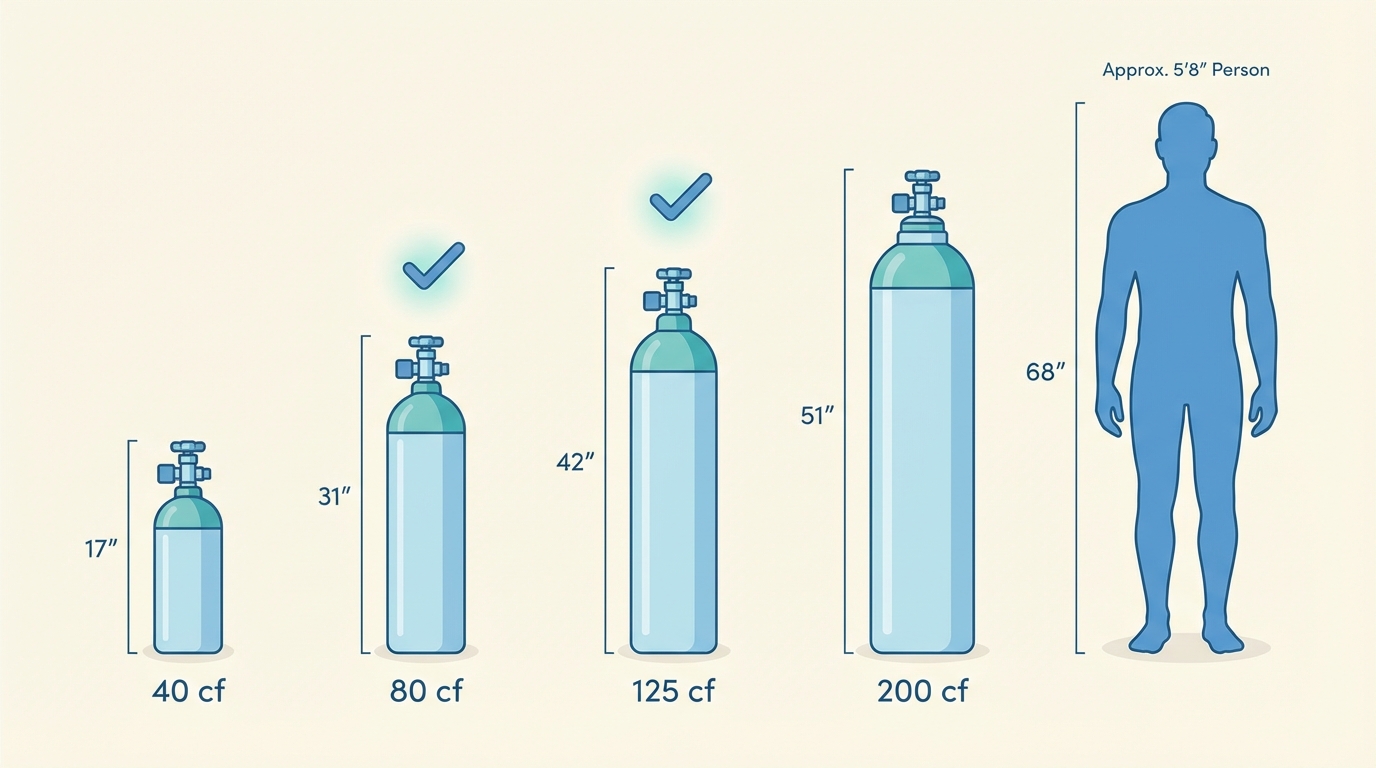

Cylinder size comparison. The 80 and 125 cf sizes are the most popular for home use. The 200 cf holds far more gas but requires a cart for transport.

Step 3: Choose how you'll breathe the oxygen

Your delivery method determines what regulator you'll need in the next step, so choose this first. There are three options:

• Demand valve (~$250–400+): Expensive, but often considered the best option. It delivers oxygen on demand (as much as you can inhale) and shuts off automatically between breaths, so no oxygen is wasted. A demand valve typically requires a regulator with a DISS outlet (see Step 4).
  • Example: Life Support L063-05R.
  • You'll need oxygen tubing (typically 5-foot length). If the demand valve doesn't come with it, purchase it separately, and make sure that it has the appropriate connection (typically, a DISS connection).
• ClusterO2 kit (formerly called O2ptimask) (~$32 from clusterheadaches.com): designed specifically for cluster headache patients. Can be used either with a mouthpiece, or with a mask that has no side vents and is designed to tightly seal. Commonly recommended on patient forums. Connects via standard oxygen tubing to a barb outlet on your regulator.
• Standard non-rebreather mask (NRB) (~$5–10, widely available): functional, but has side vents. These vents might let room air in and dilute the oxygen concentration. It is sometimes recommended to block or tape over the vents to improve the seal. Connects via standard oxygen tubing to a barb outlet.
  • Like the ClusterO2 kit, NRB masks come with a reservoir bag: a small balloon-like bag that hangs below the mask and collects oxygen between breaths so you have a full breath available when you inhale.
  • You'll need standard oxygen tubing (typically 5-foot length, ~$5, widely available) to connect to a barb outlet on your regulator.

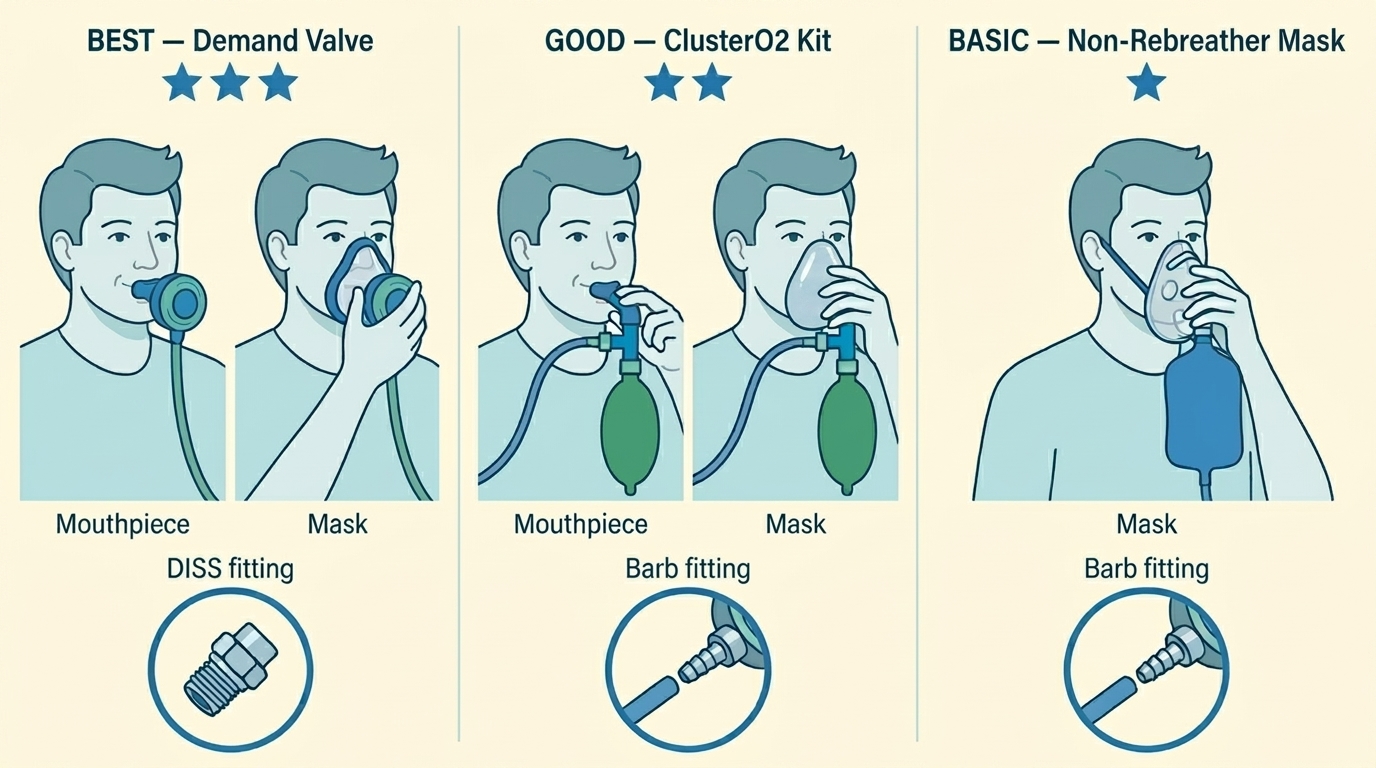

The three delivery options compared. The demand valve and ClusterO2 kit can be used with either a mouthpiece or a sealed mask. The non-rebreather mask typically isn't sealed: It has either side valves or sides holes to let out the air you breath out. It is recommended to close off side holes to prevent outside air from mixing with pure O2. Insets show the connector type each option requires on the regulator: a DISS fitting for the demand valve, or a barb fitting for the ClusterO2 kit and NRB.

Step 4: Get a regulator

All standard welding oxygen cylinders use the CGA 540 valve connection, a large threaded post. Any regulator with a CGA 540 inlet will fit. Your choice of regulator depends on your delivery method from Step 3.

If you're using a mask (ClusterO2 kit or NRB), you need a regulator with a barb outlet: a tapered, barbed fitting that standard oxygen tubing pushes onto. You have two sub-options:

• A standard welding regulator ($20–30) shows output pressure, not liters per minute. You adjust the valve until the reservoir bag on your mask refills quickly enough that it never fully collapses when you inhale, even when you're breathing as fast as you can. Two inexpensive (~$25), widely available options:
  • IMAGE CGA 540 Welding Regulator
  • Yaetek CGA 540 Welding Regulator
• A medical-style LPM regulator (more expensive and harder to find) has a dial calibrated in liters per minute, which lets you set a precise flow rate. We recommend you pick a regulator that can output at least 25 LPM. Check that the inlet is CGA 540.

If you're using a demand valve: Demand valves typically screw onto a threaded connector called a DISS (Diameter Index Safety System). This means you'll either need to buy:

• A regulator with a DISS outlet. Example: Responsive Respiratory 25 LPM CGA 540 regulator.
• A regulator with a barbed outlet (see above) and a barb-to-DISS adaptor, such as this one.

If you bought two cylinders (a large one for home and a small portable one): we recommend buying a regulator and breathing equipment for each. For example, you could buy a demand valve for home, and a cheaper ClusterO2 kit for your portable cylinder.

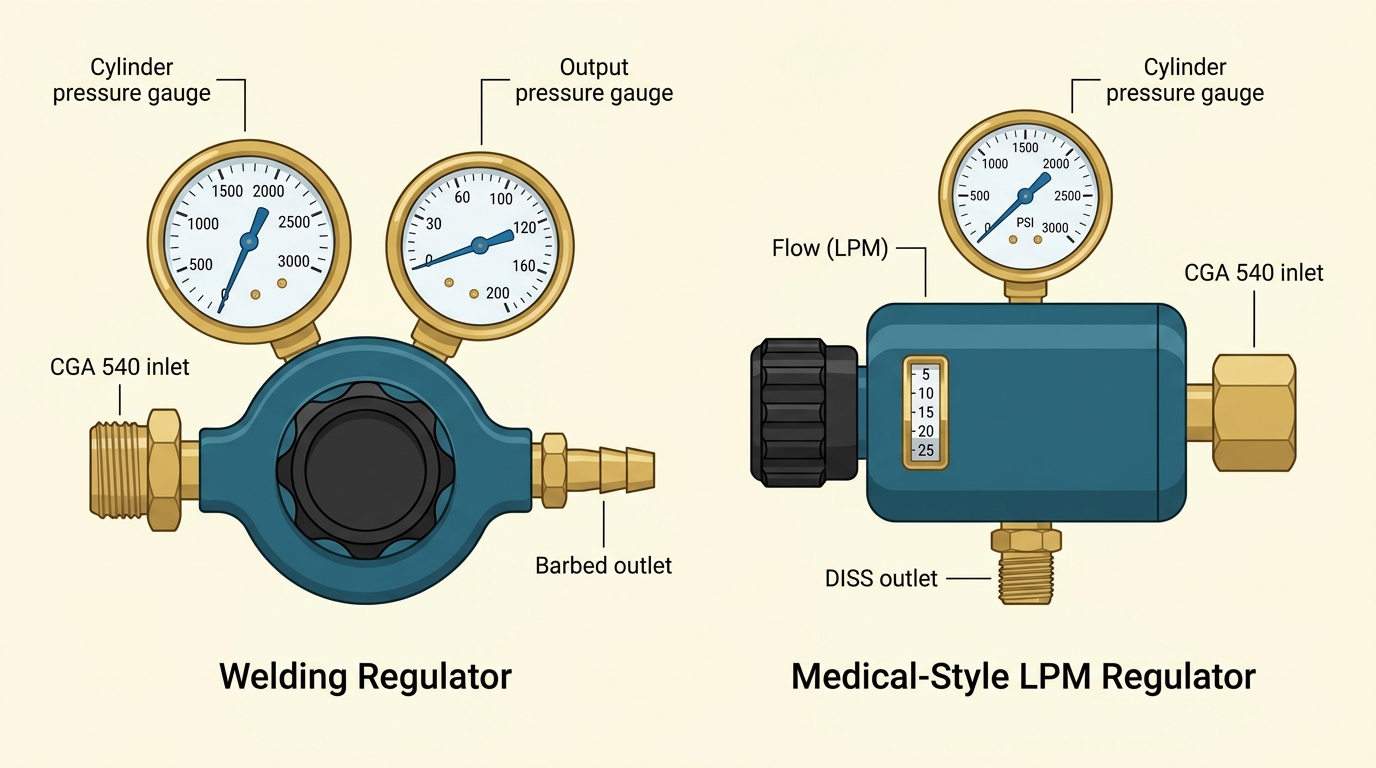

The two regulator types. Left: a standard welding regulator with two pressure gauges and a barbed outlet for standard tubing. Right: a medical-style LPM regulator with a flow dial calibrated in liters per minute and a DISS outlet for demand valves. Both have a CGA 540 inlet that threads onto the cylinder valve.

Step 5: Assemble and test

Once you have all four components, setup takes about 10 minutes:

1. Secure the cylinder upright. Cylinders should always be secured so that they can't fall. A large, full cylinder is heavy, and a fall can shear off the valve, which can turn the cylinder into a dangerous projectile or cause a rapid gas leak. When the cylinder is not in use, disconnect the regulator and cap the valve to prevent accidental hits from damaging it.

2. Attach the regulator to the CGA 540 valve. Hand-tighten first, then snug with an adjustable (crescent) wrench, firm but not forceful; stop when resistance increases and you can't easily turn further. The connection is metal-to-metal: no tape, no sealant, no grease. Do not use any lubricant: oil or grease near high-pressure oxygen is a fire and explosion hazard.

3. Open the cylinder valve slowly: a quarter turn to start. Listen and feel around the connection for leaks. If you hear hissing, close the valve and reseat the regulator. Once the connection is secure, open the valve all the way for use.

4. Connect the tubing from the regulator outlet to the mask. Again, use no lubricant.

5. If you're using an LPM regulator, set the flow rate (start at 15 LPM; adjust up to 25 LPM as needed). If you're using a welding regulator, gradually turn open the pressure dial until the reservoir bag fills quickly.

6. Test it. Put the mask on and breathe. The reservoir bag should not fully collapse when you inhale; if it does, increase the flow rate.

7. When you are done testing, close the cylinder valve and the regulator dial.

Reading the pressure gauge: Your regulator has a gauge showing how much oxygen is left in the cylinder, measured in PSI. A full cylinder reads around 2,000–2,200 PSI. When it drops below 500 PSI, plan your next refill. Some patients report that oxygen seems to lose effectiveness in the last third of the tank, so don't wait until it's nearly empty. Never let it drop below 50 PSI before returning the cylinder; some positive pressure is needed to keep moisture and contaminants out.

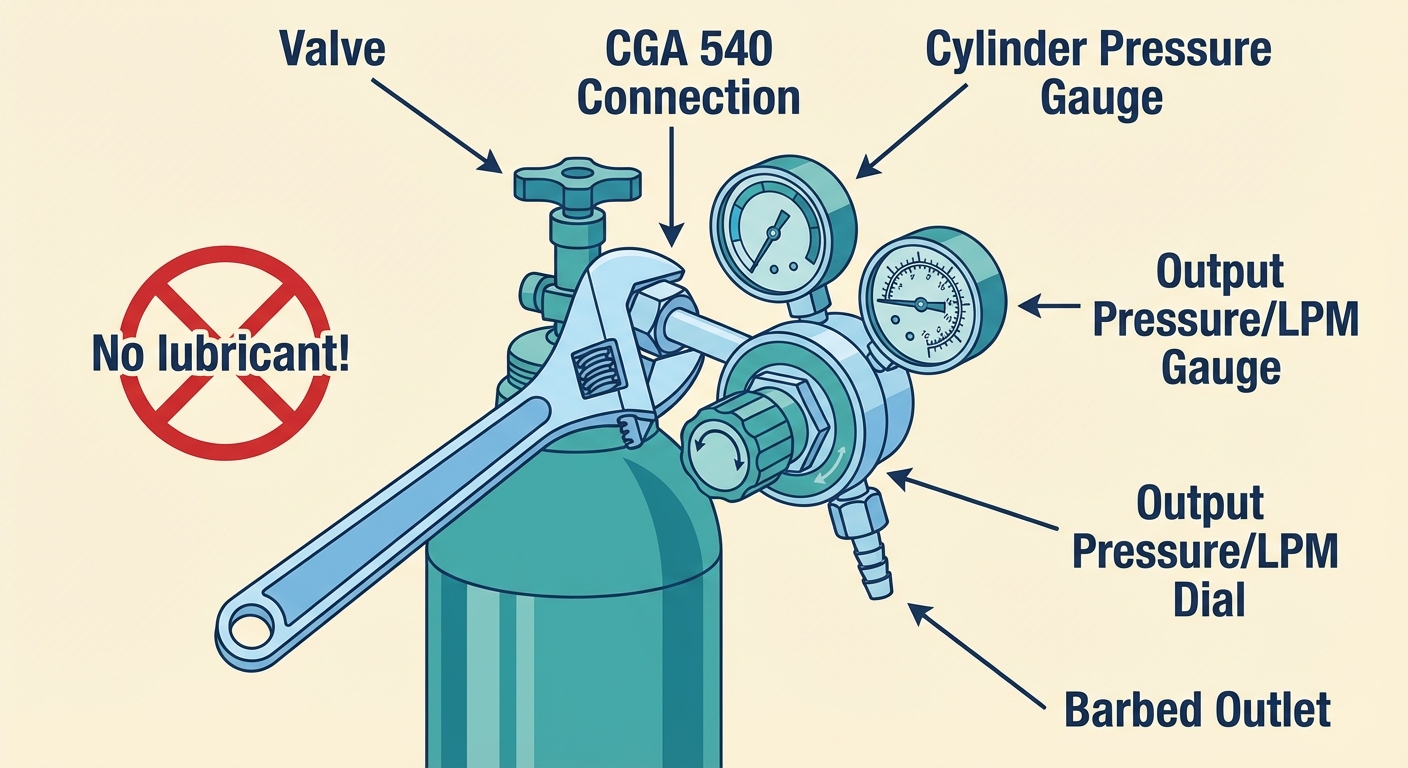

Attaching the regulator to the cylinder valve. Hand-tighten first, then snug with a wrench. Use no lubricant.

Safety

These rules apply to all oxygen, medical or welding.

• No smoking near the cylinder or while wearing the mask.
• No open flames or sparks nearby.
• No oil or grease on the valve, regulator, or fittings; some lubricants are flammable, and combined with high-pressure oxygen, they're a fire and explosion risk.
• Store the cylinder upright, secured. A falling cylinder can shear off its valve, causing a dangerous leak or turning it into a projectile.
• Close the valve after every use. Don't leave the cylinder open with only the regulator controlling flow. If a fitting fails, you'd release the entire tank into the room, creating an oxygen-enriched atmosphere and a fire hazard.
• Never return a completely empty cylinder. Leave at least 50 PSI of positive pressure (your regulator gauge will show this). Without positive pressure, moisture and contaminants can enter the cylinder through the valve.
• Keep the valve cap on during transport. It protects the valve from impact damage.
• Ventilate. A normal room is fine; just don't use it in a tiny sealed closet.

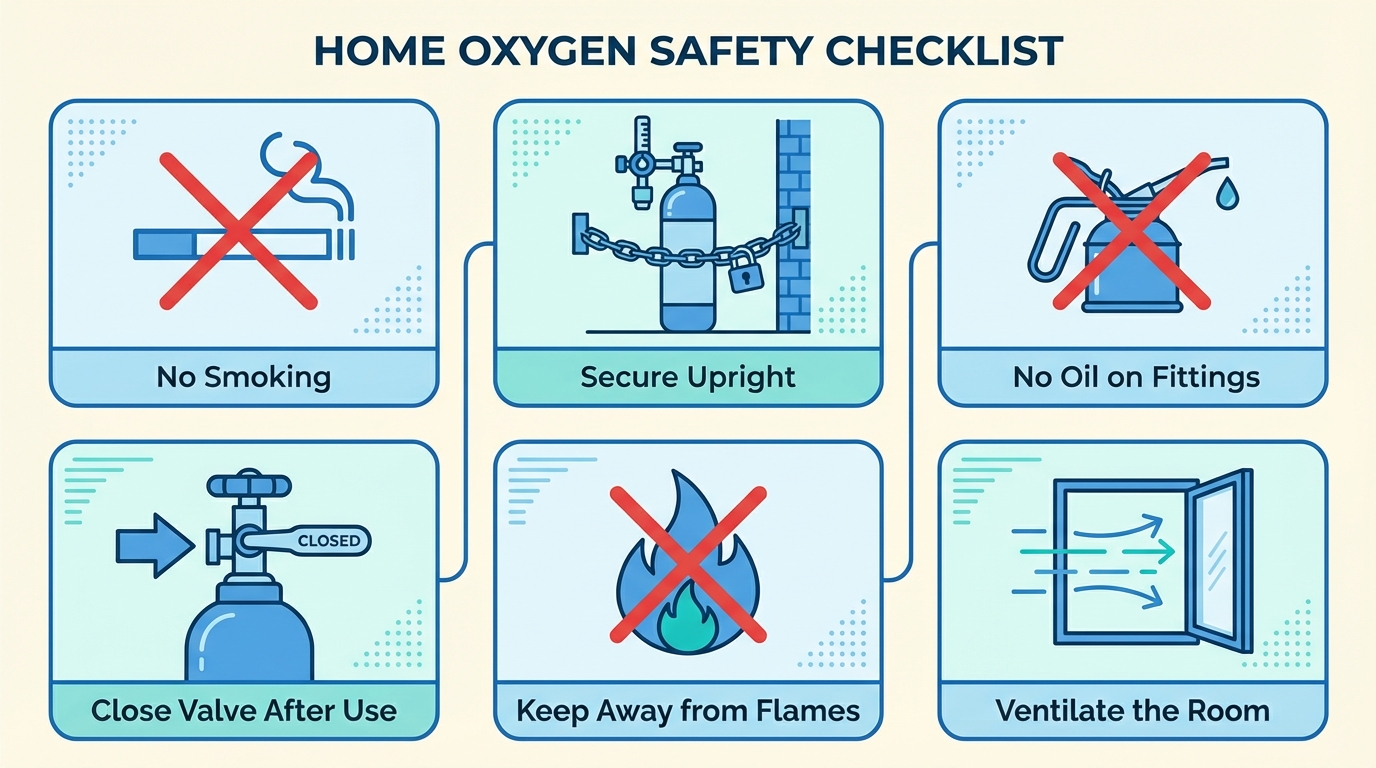

Home safety rules for oxygen. These apply equally to medical and welding oxygen.

Cost Summary

Item	Approximate cost	Notes
Cylinder rental (monthly)	$15–25/month	Or buy outright for $100–200+
Cylinder fill	$20–40 per fill	Depends on size
Regulator (CGA 540)	$20–70	One-time; welding style ~$20–30, medical LPM ~$30–70
ClusterO2 kit	~$32	Or standard NRB for ~$5
Demand valve (optional upgrade)	$250–400+	Most efficient O₂ use
Oxygen tubing	~$5	Standard 7-foot
Cylinder cart or strap	$30–60	One-time; optional but recommended
Total first month (mask)	~$125–230	With ClusterO2 kit or NRB
Total first month (demand valve)	~$375–600+	With demand valve
Ongoing monthly	~$35–65	Rental + 1 refill; heavy cycles cost more

Compare: medical oxygen through a DME supplier without insurance often costs $200–400+ per month. During heavy cluster periods, you may need multiple refills per week, which can push ongoing welding oxygen costs above $100/month — still far less than the medical route.

Tips from the Community

Practical wisdom from patients who've been through this:

1. You can burn through O2 faster than you expect. At 25 LPM, an 80 cf tank gives you about 90 minutes of total use. During heavy cluster periods, you may need multiple refills per week. This is why bigger cylinders are worth the effort.

2. Set everything up before a cycle starts. When an attack hits at 3 AM, you'll be in severe pain, possibly disoriented, fumbling in the dark. The last thing you want is to be assembling equipment for the first time. Set it up, test it, and keep the mask within arm's reach of your bed.

3. The breathing equipment matters. A NRB mask with a poor seal wastes oxygen and reduces effectiveness. Upgrade from a basic NRB to a demand valve if you can afford it, or a ClusterO2 kit. As a cheaper alternative, consider taping over the NRB's side vents.

4. Check regularly that your oxygen setup works. The last thing you want is a seal blowing out during an attack. Consider having spare parts in case something breaks.

5. Wash the breathing equipment (mask, mouthpiece or demand valve) in warm water with soap every once in a while. This prevents dirt from accumulating and potentially messing up with the system.

---
